MASERATI GRANTURISMO OEM Integrated Backup Camera

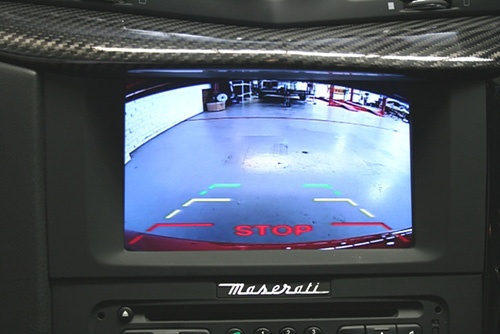

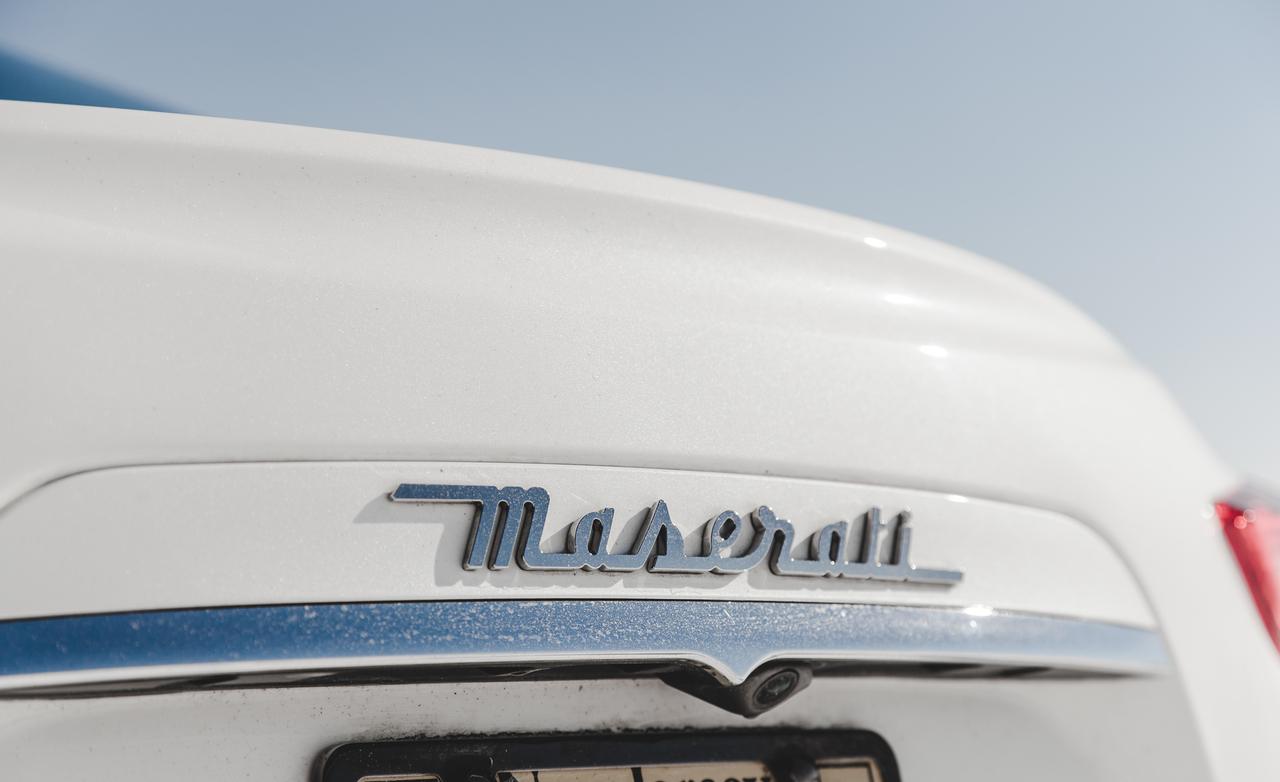

The MASINT-UNIDF systems package is a high definition rear view camera and video integration module for your MASERATI vehicle with or without Navigation. The OEM Integrated backup camera is mounted above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The MASINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

MASERATI GRANTURISMO Systems COMPATIBILITY

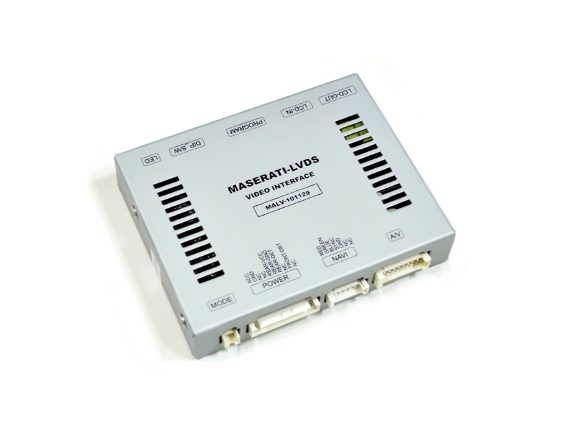

MASERATI GRANTURISMO Interface Module FEATURES

Input

• Plug & Play installation by LVDS cable
• Connected devices controlled by iDrive buttons
• DVD & NAVI control by through optional touch screen panel
• 1 x dedicated Rear-View Camera input
• 3 x A/V Inputs
• 1 x LCD input

Output

• 2 x CVBS output (video out for headrest monitor installation)
• 1 x Audio output
• 1 x LCD output
• Factory button function & provided remote control

Power

• Input power : 8V DC - 24V DC
• Consumption : 5W, Max

Board dimension

• 130mm x 105mm x 22mm

MASERATI GRANTURISMO Backup Camera Features

Features

• Maserati Rear-view Camera fitment
• Vivid Color High Resolution
• 170° Wide Angle View
• Parking Guide Lines (can be turned on/off)
• Waterproof Ip68
• Shockproof
• Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)

MASERATI GRANTURISMO Backup Camera System PACKAGE CONTENT

• MASERATI Car Video Interface Main Board
• Remote control unit with IR cable or OSD Keypad
• Cable set
• Power Cable with protective filter
• LCD Out cable
• AV bundle cable
• NAVI (RGB) cable
• Mode switch cable
• LCD cable
• MASERATI Rear-view Camera
• Power/Ground harness cable
• 30FT Video cable
• Installation Instructions
• Owners Manual/Warranty Card
