Audi AMI Backup Camera Retrofit

Audi AMI Backup Camera Retrofit

toyota backup camera system package contents

Toyota Backup Camera Retrofit

Audi MMI Backup Camera Retrofit

This Audi MMI Backup Camera Retrofit is compatible with all Audi models equipped with the Audi MMI Radio command system included 2g MMI, 3G MMI and 3g+ MMI. The comprehensive Multimedia Video Interface integrates through a simple plug-in connection to enable the viewing of external video sources such as Backup Camera (provided in kit), front camera and a 3rd DVR input.

Apple CarPlay & Android Auto Add-On

Now you can add CarPlay and Android Auto to you Audi MMI Command System. CLICK HERE to learn more.



Check Compatibility

$400.00
Availability: Out of stock
SKU
EI-AUD-MMI

Audi MMI Backup Camera Retrofit System

TheAudi MMIbackup camera system is a multimedia user interface that connects our high definition rear view camera to the factory installed/OEM MMI system currently in your vehicle. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

BMW backup camera system

Keep Your Current Screen

THIS IS NOT A SCREEN REPLACEMENT. Our system utilizes your current radios existing harnesses to connect directly to the back of your OEM Audi MMI screen to seamlessly integrate the new functionality into your current system. Using you current screens decreases the potential for issues and ensures that you will keep all of the current features you know and love while also adding the new features you desire.

Plug And Play

Once installed, you Audi MMI command system will be instantly equipped with the backup camera feature. No Programming or Dealer activation required.

Camera Options

You can choose between multiple high definition backup cameras for this system. All of which will integrate with your already existing PDC (Parking Distance Control) for a picture-in-picture view of both the rear camera and your PDC if applicable.

Standard Flush Mount Camera - perfect for mounting on the lip above the license plate. It has over 170 degree view of the area behind you and works great in low light.

Adjustable Lens Camera - provides a little more flexibility with the exact angle of its view. This camera is for those who want to mount it their camera in a location other than near the license plate, such as on the spoiler or bumper. It's also recommended if your vehicle is lowered or raised.

Tailgate Handle Camera - gives your vehicle the OEM look. These replace the current handle on the trunk of your vehicle to include the camera as part of the handle itself.

In addition to a rear camera, our module also supports a front camera input that will automatically trigger when shifting out of reverse and will time out after 15 seconds.


Compatibility

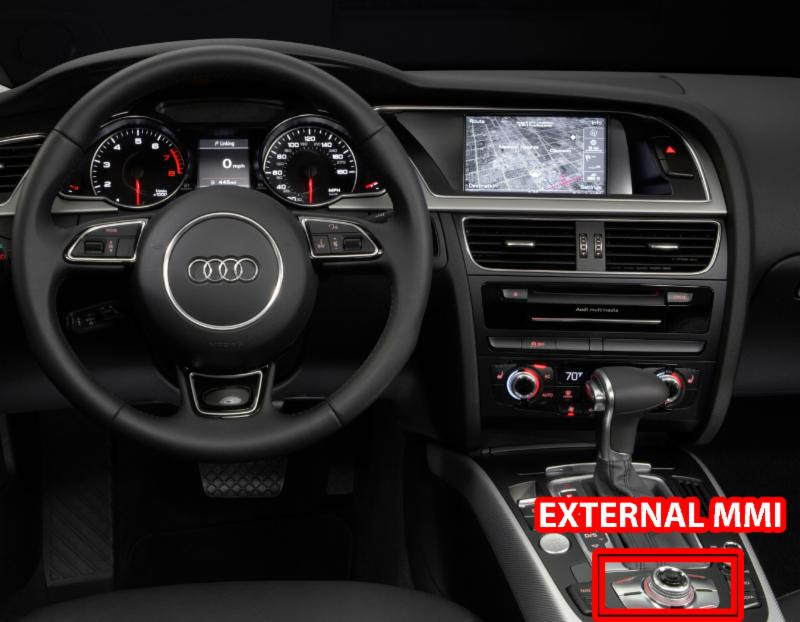

This integration system comes with wiring specifically designed to connect to the factory Audi MMI command system. Therefore it is critical that you're certain your vehicle has the correct system before ordering. Below are is an image of the Audi MMI system user interfaces. You must make sure you you have the MMI system before ordering. Please call or message before ordering if you are unsure of your command system. You can send a picture of your radio and screen (while the vehicle is on) to sales@emeraldintegrations .

MMI/EXT MMI

MODEL YEAR RANGE COMMAND SYSTEM
A3, S3, RS3, A4,S4, RS4 A5,S5,RS5 A6,S6,RS6 A7,S7,RS7, A8,S8,RS8 Q5, Q7 2011-2018 2G MMI, 3G MMIG, 3G+ MMI



How To Order

  1. Identify & select your current command system using the image above.
  2. Choose reverse camera and front camera options or decline by choosing "NONE".
    • Be sure to measure your trunk handle if choosing a Tailgate Handle Camera.
  3. Choose warranty.
  4. Add to Cart and start checkout process.
*Any amount shown to the right of an option will be added to your order automatically.*

Start Your Order


Specifications

Multimedia Interface Specs

Input:

  • RCA*2 (front & rear view camera)
  • HDMI*1 (720P)
  • 3.5mm jack female*1 (add on microphone)***
  • HSD*1 (LVDS)

Output:

  • HSD*1 (LVDS)
  • WiFi & BT antenna*1 ***
  • 3.5mm jack male*1 (audio L/R)***

Power Spec:

  • Input power: 9V-16V
  • Consumption: 6W

*** = Only for Apple Carplay / Android Auto interface

Flush Mount Camera Specs

  • OEM Style Backup Camera
  • Can mount on license plate screw
    (to avoid drilling a hole)
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines Option (ON / OFF)
  • Mirroring Feature (On / OFF)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

Tailgate Handle Camera Specs
( For Select Vehicles Only)

  • OEM Style Tailgate Handle Backup Camera
  • Trunk release button
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines Option (ON / OFF)
  • Mirroring Feature (On / OFF)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation

 Handle Camera Compatibility

MODEL Year Range Handle Measurement
A4,S4, RS4 A5,S5,RS5 A6,S6,RS6 A8,S8,RS8 Q5, Q7 2011 + Vehicle Must Currently have a 6" Trunk Handle
Make sure you measure your trunk handle before purchasing.



Adjustable-Lens Camera Specs

  • Flush Mount Camera
  • Manually Adjustable Camera Lens
  • Vivid Color High Resolution
  • 170° Wide Angle View
  • Parking Guide Lines Option (ON / OFF)
  • Mirroring Feature (On / OFF)
  • Waterproof Ip68
  • Shockproof
  • Simple Installation



Package Contents

Included:

  • LVDS Cable
  • CAN/POWER Cable
  • AV Harness
  • Wifi Antenna
  • camera (optional)
  • Installation Guide

*Exact package contents may differ based on your vehicle specification and options chosen*



More Information
Make BMW
Year 2007,2008,2009,2010,2011,2012,2013,2014,2015,2016,2017,2018,2019
Write Your Own Review
You're reviewing:Audi MMI Backup Camera Retrofit
Your Rating
Icon Label Description Type Size Download
pdf BMW-EVO BMW-EVO OEM Integrated Backup Camera System - Installation Guide pdf 3.7 MB Download
pdf BMW-CIC BMW-CIC Installation Guide pdf 694.9 KB Download
pdf BMW-NBT BMW-NBT OEM Integrated Backup Camera System - Installation Guide pdf 7.9 MB Download
pdf BMW-CIC-CPC BMW-CIC-CPC - Wireless Apple CarPlay / Android Auto - Installation Guide pdf 2.9 MB Download
pdf BMW-EVO-CPC BMW-EVO-CPC Wireless Apple CarPlay / Android Auto pdf 2.6 MB Download
pdf BMW-NBT-CPC BMW-NBT-CPC Wireless Apple CarPlay / Android Auto - Installation Guide pdf 4.7 MB Download
