AUDI AMI Video Interface Module

Our AUDI-AMI Video Interface Module will integrate rear and/or front cameras onto your existing OEM screen. Once installed, our system is ready for use without dealer activation or coding required.

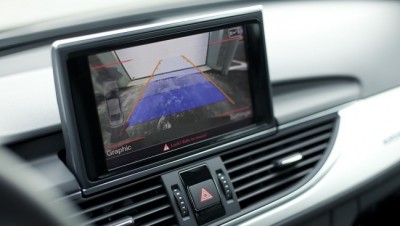

When in reverse, the rear camera will automatically display and revert back to your OEM screen when in park or drive. Furthermore, our AUDI-AMI Video Interface Module will include Dynamic Parking Guidelines that move with the steering wheel to better assist you in parallel parking.

With a front camera, the image will automatically display when shifting out of reverse and will automatically time out after 10 seconds. Our 360 Front Camera includes a pair of static parking guidelines that are color coordinated and can be disabled if need be.

Our OEM Integrated AUDI-AMI system does not require cutting, splicing or soldiering of any kind. Our OEM Integrated t-harnesses will directly connect onto the OEM t-harnesses for quick installation.

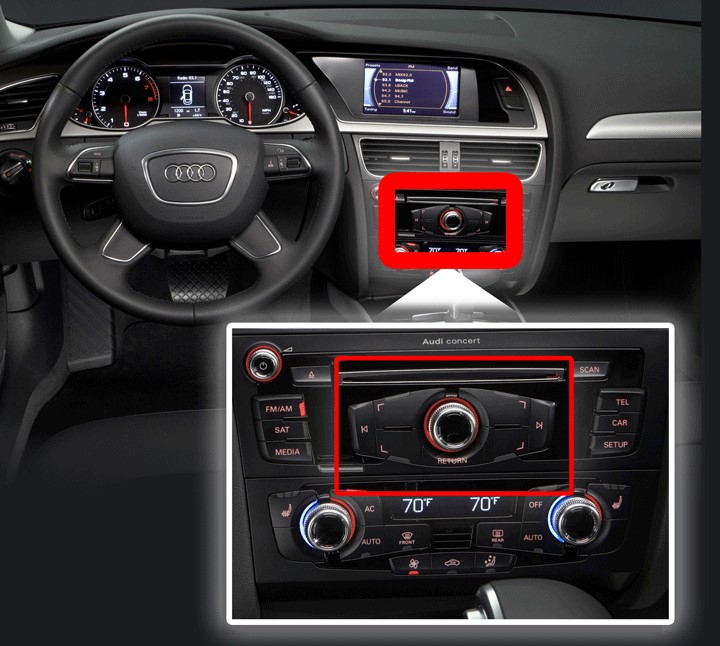

AUDI Multimedia Video Interface Module COMPATIBILITY

Audi Video Interface Module Features

Input

• • Rear Camera Input
  • Front Camera Input

Output

• ACC 12v Power Output
• 12v Camera Power Output
• Constant 12v Output
• Ground Lead
• Reverse Trigger (for MT vehicles)

Board dimension

• 3.5" x 2.5" x 3/4"

Audi AMI Video Interface Module Package Content

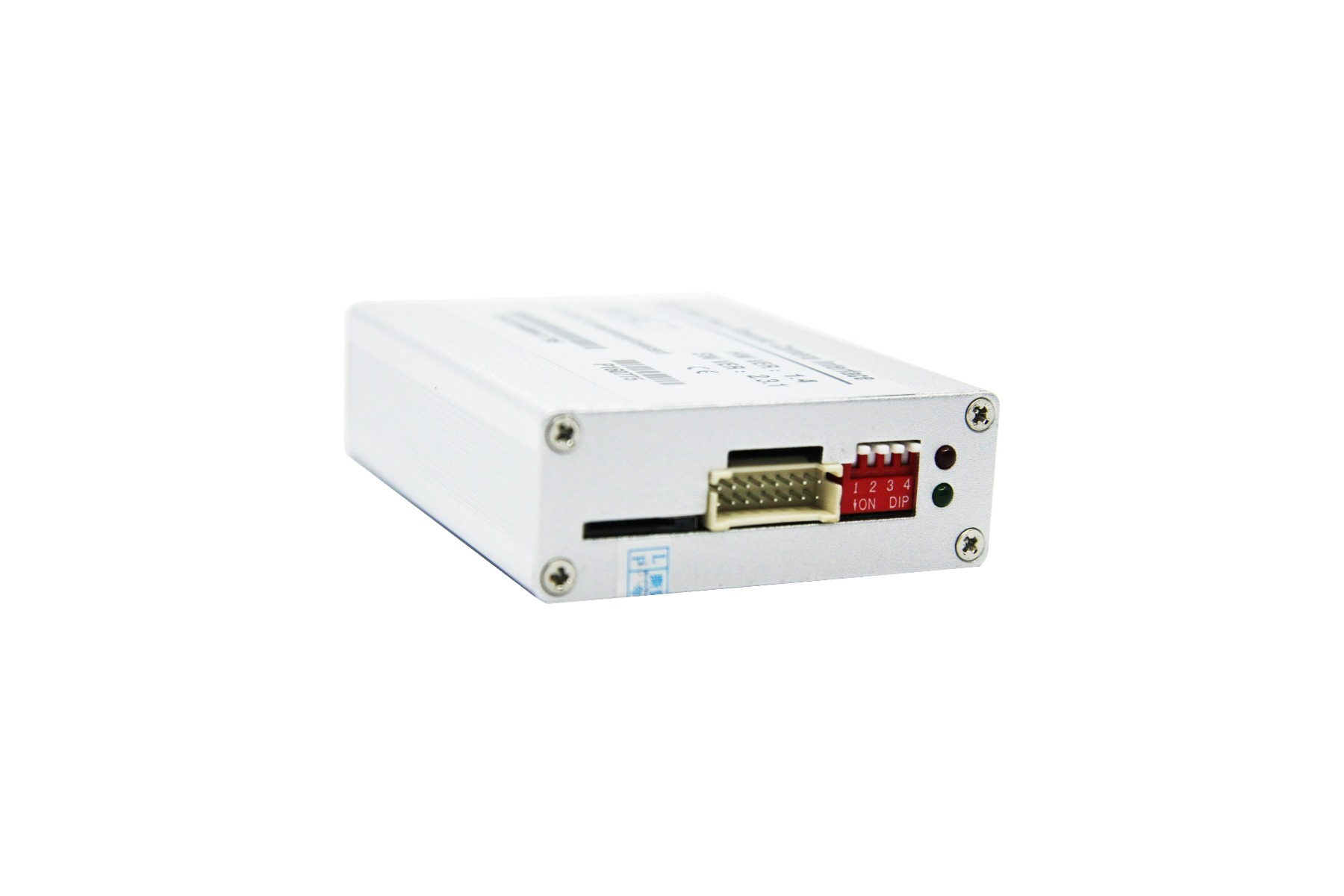

• Audi AMI Video Interface Module
• AV Harness
• Audi Integrated T-Harness
• Audi Integrated LVDS Cable
• Installation Guide
