BMW Multimedia Video Interface Module

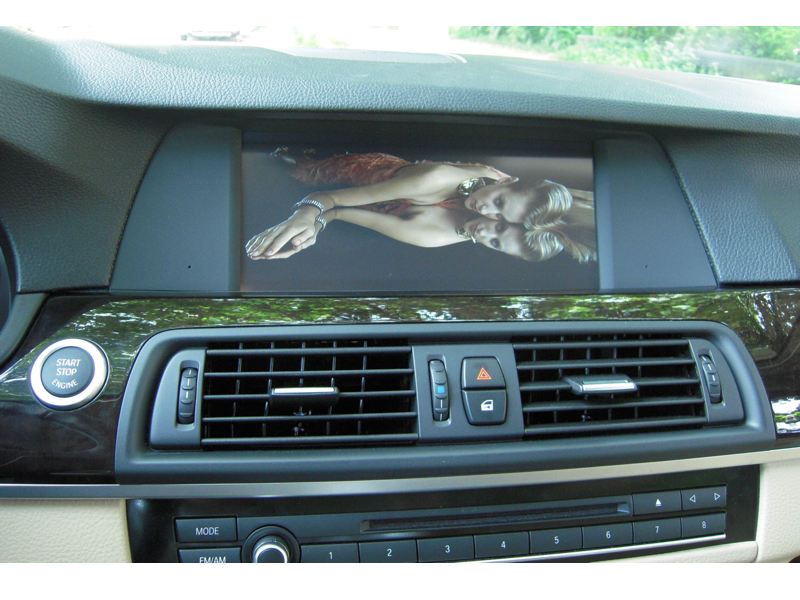

The BMWPIPINT systems package is a high definition video integration module for your BMW vehicle with iDrive. The video interface connects through a simple plug and play OEM Integrated LVDS connection to the factory screen. The BMWPIPINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is an OEM integration package that maintains your factory set up while upgrading your vehicle with full Multimedia Audio/Video integration.

System Highlight Notes*

• Video Interface Module contains PIP (Picture in Picture) function

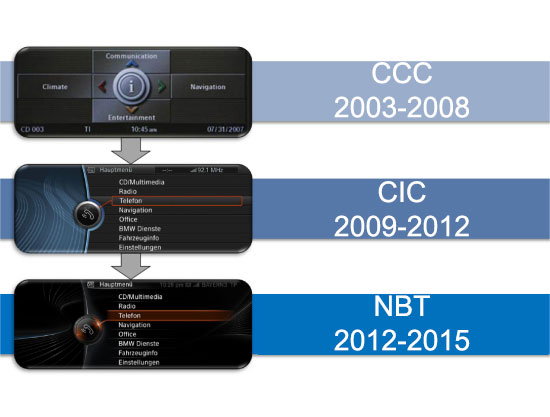

 BMW Multimedia Video Interface Module COMPATIBILITY

BMW Multimedia Video Interface Module FEATURES

Input

• Plug & Play installation by LVDS cable
• DVD & NAVI control by through optional touch screen panel
• 1 x dedicated Rear-View Camera input
• 3 x A/V Inputs
• 1 x LCD input

Output

• 2 x CVBS output (video out for headrest monitor installation)
• 1 x Audio output
• 1 x LCD output
• Factory button function & provided remote control

Power

• Input power : 8V DC - 24V DC
• Consumption : 12W, Max

Board dimension

• 130mm x 105mm x 22mm

BMW Multimedia Video Interface Module PACKAGE CONTENT

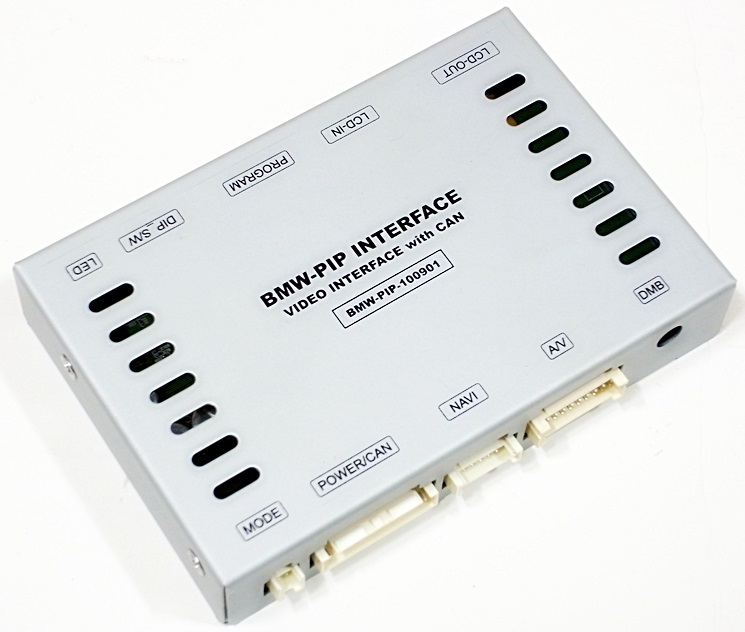

• BMW Car Video Interface Main Board
• Remote control unit with IR cable or OSD Keypad
• Cable set
• Power Cable with protective filter
• LCD Out cable
• AV bundle cable
• NAVI (RGB) cable
• Mode switch cable
• LCD cable
• Installation Instructions
• Owners Manual/Warranty Card
