Details

CHEVROLET TAHOE OEM Integrated Backup Camera

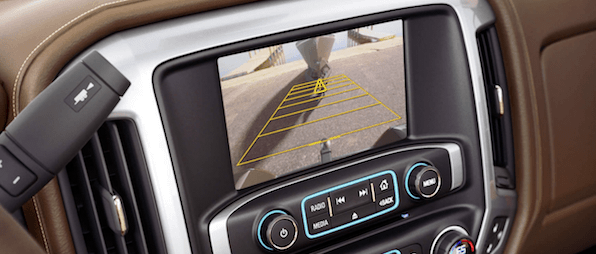

The FC-CML-TA systems package is a comprehensive high definition Rear View Camera and Factory Connect Harness for your CHEVROLET. The OEM style Rear View Camera is mounte above the license plate area and connects to the Factory specific CHEVROLET Harness behind the existing screen. Once the vehicle is placed into reverse the high resolution image of the backup camera will automatically appear on the factory display for safe navigation. This kit is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with a Rear View Camera System.

CHEVROLET TAHOE Systems COMPATIBILITY

CHEVROLET Model	Model Year	Multimedia System

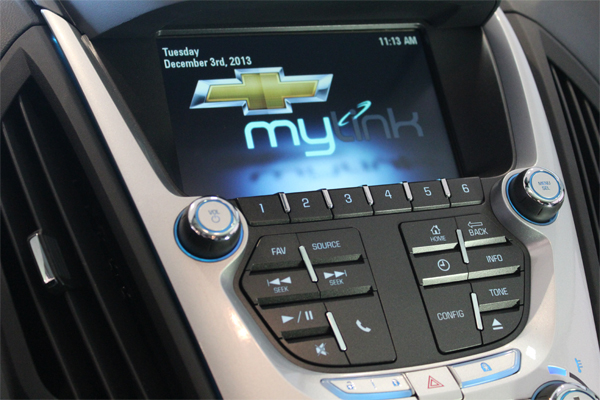

Tahoe	2014	with MyLink

CHEVROLET TAHOE Factory Connect Harness FEATURES

Features

Factory CHEVROLET Connect Harness
Plug & Play configuration
Quick Connect to Video Cable and Rear Camera
Automatic Reverse trigger activation
Rear Camera Input (RCA)
Parking Guide Line Option (ON/OFF)

CHEVROLET TAHOE Backup Camera FEATURES

Features

OEM Style Backup Camera fitment
SONY CCD HD
Vivid Color High Resolution
170° Wide Angle View
Parking Guide Lines (can be turned on/off)
Waterproof Ip68
Shockproof
Simple Installation

Specifications

Specification Terms	Product Values
Image Sensor	CCD HD Sony
Power Supply	DC12V±1V
Power	<1W
Effective Pixels	728*582
Resolution (TV Line)	520
Electronic Shutter	1/60, 1/10,000 sec
Lens Angle	170°
Min. Illumination	0.01lux
IP Rating	Ip68
S/N Ratio	≥48dB
Video Output	1.0vp-p.75Ω
Current Consumption	30-60mA
Operating Temp. (F)	-20~+100
Storage Temp. (F)	-40~+120
TV System	NTSC/PAL
White Balance	Auto
