This OEM Integrated FORD Rear-View Backup Camera kit fits all 2013-2017 FORD F-350 models with SYNC & MyFord Touch Navigation Systems. The comprehensive Multimedia Video Interface integrates behind the factory screen through a simple plug and play connection to enable Video In Motion and the viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

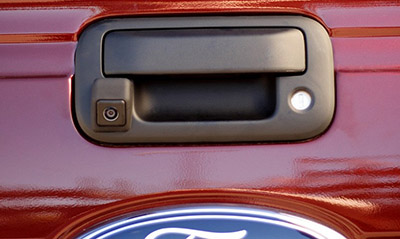

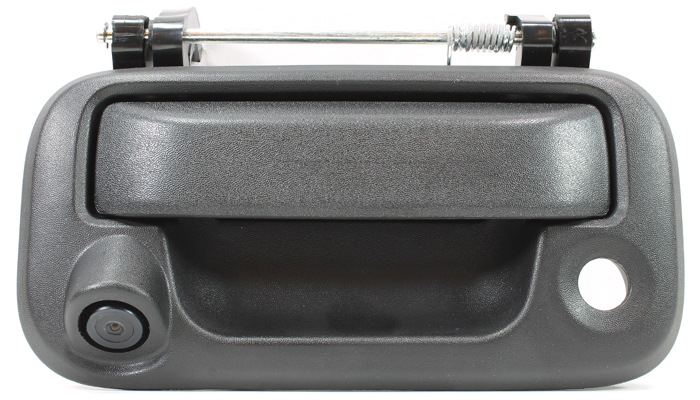

The Ford F-350 OEM Integrated Backup Camera System is a high definition rear view camera and video integration module for your FORD vehicle with Hard Drive SYNC or MyFord Touch Navigation. The OEM Integrated Backup Camera replaces and mounts within the tailgate handle, once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The Integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.
| FORD Model | Model Year | Interface System |
| F-350 | 2013-2017 | 4.2" SYNC |
| F-350 | 2013-2017 | 8" MyFord Touch |
Input
Output
Highlights
Features
Specifications
| Specification Terms | Product Values |
| Image Sensor | CCD HD Sony |
| Power Supply | DC12V±1V |
| Power | <1W |
| Effective Pixels | 728*582 |
| Resolution (TV Line) | 520 |
| Electronic Shutter | 1/60, 1/10,000 sec |
| Lens Angle | 170° |
| Min. Illumination | 0.01lux |
| IP Rating | Ip68 |
| S/N Ratio | ≥48dB |
| Video Output | 1.0vp-p.75Ω |
| Current Consumption | 30-60mA |
| Operating Temp. (F) | -20~+100 |
| Storage Temp. (F) | -40~+120 |
| TV System | NTSC/PAL |
| White Balance | Auto |
| Make | FORD |
|---|---|
| Year | 2009,2010,2011,2012,2013,2014 |
