JAGUAR XK OEM Integrated Backup Camera

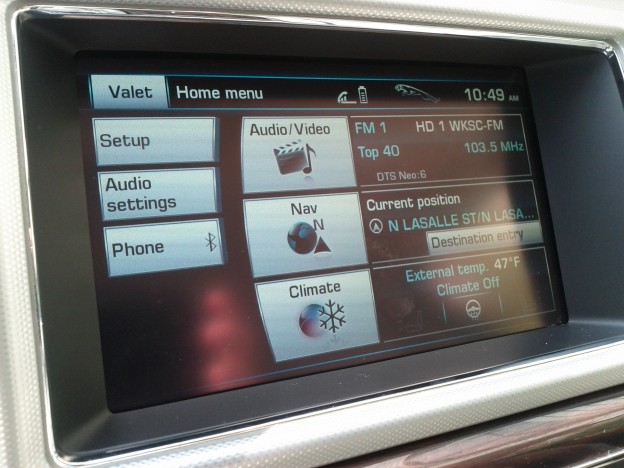

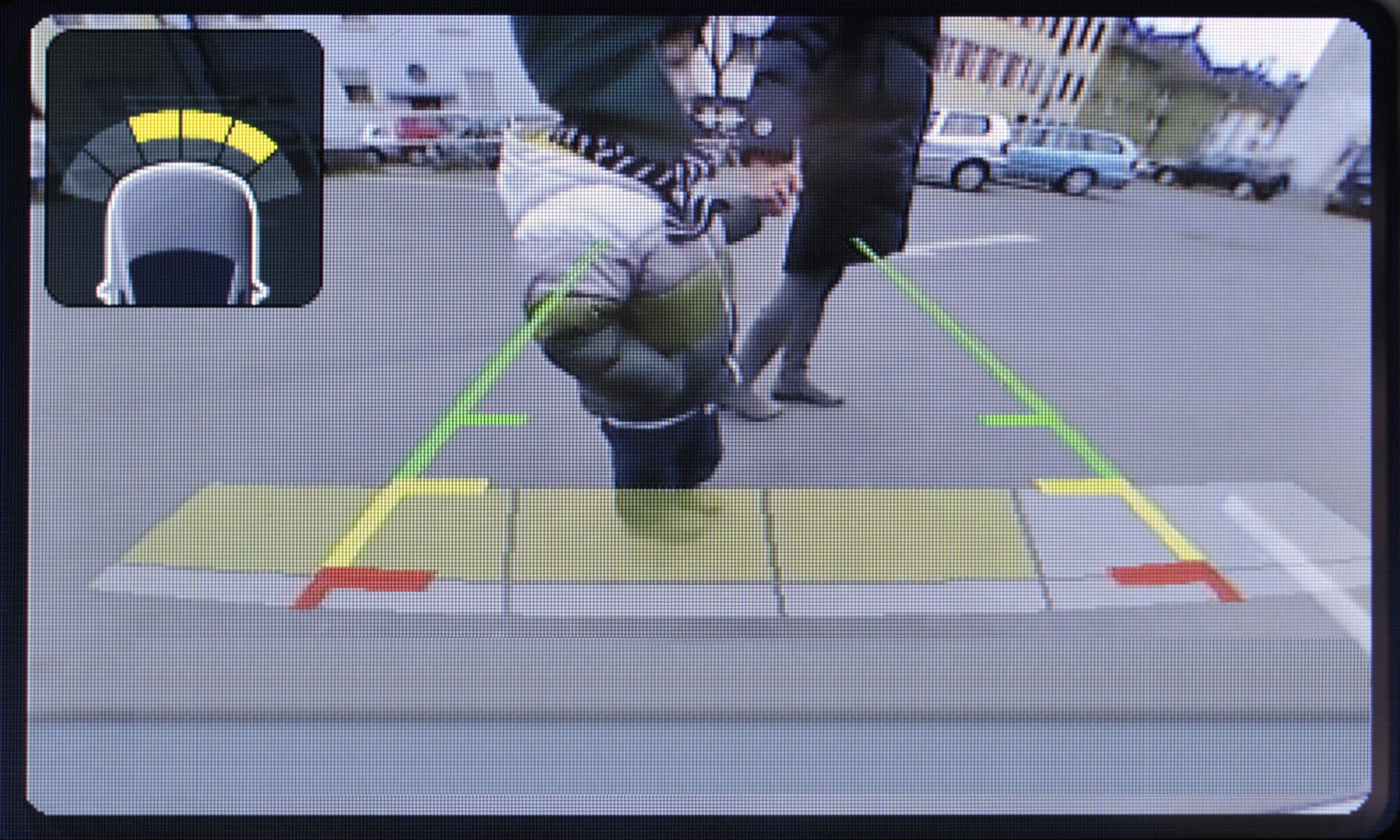

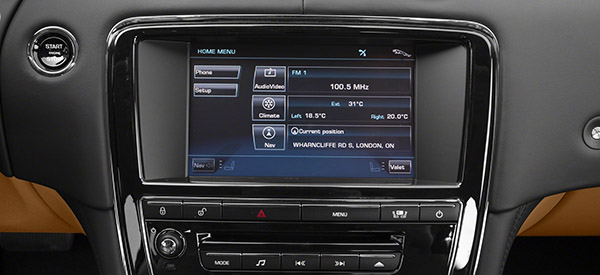

The JAGINT-UNIDF systems package is a high definition rear view camera and video integration module for your JAGUAR vehicle with OEM Integrated external navigation box. The OEM Integrated backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The JAGINT Interface Module has a dedicated rear view camera input, aftermarket RGB Navigation input, and 3 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM integration package that maintains your factory set up while upgrading your vehicle with backup camera and full Multimedia Audio/Video integration.

JAGUAR XK Systems COMPATIBILITY

JAGUAR Model	Model Year	Multimedia System
XK	2007-2014	JAGINT

JAGUAR XK Interface Module FEATURES

Input

Installation by Plug & Play LVDS Cable
DVD & NAVI control by through optional touch screen panel
1 x dedicated Rear-View Camera input
3 x A/V Inputs
1 x LCD input

Output

2 x CVBS output (video out for headrest monitor installation)
4 x Audio select output
1 x Cayenne output
Remote control & Toggle switch provided

Power

Input power : 8V DC - 24V DC
Consumption : 5W, Max

Board dimension

130mm x 105mm x 22mm

JAGUAR XK Backup Camera FEATURES

Features

Backup Camera fitment
Vivid Color High Resolution
170° Wide Angle View
Parking Guide Lines (can be turned on/off)
Waterproof Ip68
Shockproof
Simple Installation

Specifications

155° Off Axis View Cone
IP69K Waterproof Certified (Can Handle Direct High Pressure Spray and Not Leak)
UV Protected and Waterproof Cabling
0.1 LUX Rating for Optimal Low-light Performance
32° to 160° Temp Performance Rating
Quick Connect/Disconnect
Optional Parking Lines ON/OFF
Optional Mirror Image ON/OFF
Water Deterrent Gasket (Provided for Sealed Mount to Vehicle Surface)
