JEEP COMMANDER OEM Integrated Backup Camera System

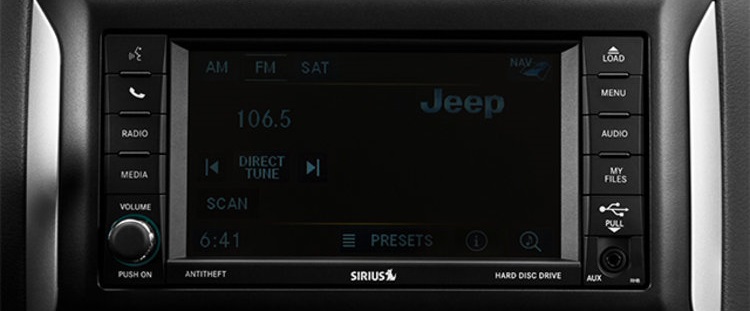

This OEM Integrated JEEP Rear-View Backup Camera kit fits all 2008-2013 JEEP COMMANDER models with MyGig Radio. The comprehensive Multimedia Video Interface integrates through a simple plug and play connection to unlock and enable Video In Motion, viewing of external video sources such as Backup Camera (provided in kit), DVD player, TV tuner, Video Game Console, Smartphone, and optional Navigation on your factory built-in car monitor.

** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT'S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **

$359.00
Availability: In stock
SKU
GCH-MYGIGUNV-COMMANDER

JEEP COMMANDER OEM Integrated Backup Camera System

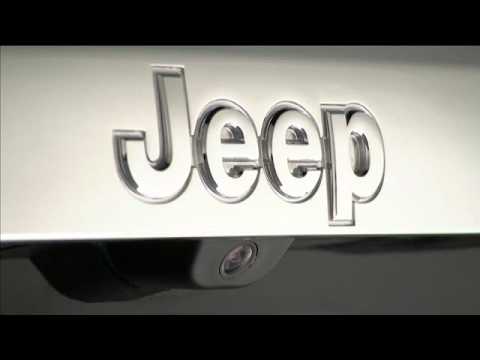

The Jeep Commander Backup Camera systems is a high definition rear view camera and video integration module for your JEEP vehicle with MyGig Radio. The OEM style backup camera mounts above the license plate area. Once connected to the video interface module, the image appears automatically in high definition when the vehicle is placed into reverse. The integration Module is a fully programmed plug and play Interface that allows for Video In Motion and has a dedicated rear view camera input along with 2 additional video inputs for external sources such as a DVD Player, Frontal Vision Camera, or iPod/iPhone. This system is a simple OEM Integration package that maintains your vehicle's factory settings and only takes a few simple steps to install, while upgrading your vehicle with backup camera and full Multimedia Video integration.

** THIS KIT DOES NOT REQUIRE DEALER ACTIVATION. IT'S A PLUG AND PLAY THAT WILL TRIGGER ONCE INSTALLED **


JEEP COMMANDER Systems COMPATIBILITY



JEEP Model     Model Year   Interface System
Commander 2008-2013 with MyGig Radio





*Works with all MyGig Radios including: RER / REN / RHB / RBZ / RHR

*Note: NON U.S. Radios not supported: REP / RHP / REZ / REW / RBZ / REJ









JEEP COMMANDER INTEGRATION FEATURES



Input

    • Plug & Play installation by LCD Connector
    • Connected devices controlled through factory Steering Wheel buttons
    • 1 x Dedicated Rear-View Camera input
    • 2 x Video Inputs
    • USB Updateable



Output

    • Unlocks Screen for Video In Motion in all gears
    • 1 x Rear View Camera Image
    • 2 x Video Source Displays
    • 2 x 12V Output for external sources



Highlights

    • Single Plug and Play Connection for Installation
    • No wire cutting or other connections needed
    • Unlocks factory screen to display sources in motion
    • View any video source in all gears
    • Simple removal for Leased Vehicles









JEEP COMMANDER OEM Style Backup Camera FEATURES


Features

    •  SONY CCD HD
    • Vivid Color High Resolution
    • 170° Wide Angle View

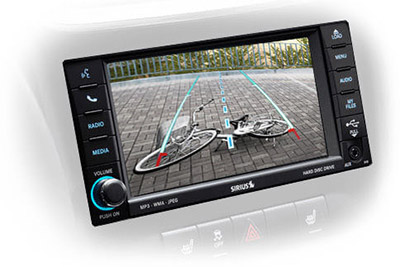

    • Parking Guide Lines (can be turned on/off)
    • Waterproof Ip68
    • Shockproof
    • Simple Installation



Specifications

Specification Terms   Product Values
Image Sensor  CCD HD Sony
Power Supply DC12V±1V
Power <1W
Effective Pixels  728*582
Resolution (TV Line)  520
Electronic Shutter  1/60, 1/10,000 sec
Lens Angle   170°
Min. Illumination  0.01lux
IP Rating  Ip68
S/N Ratio   ≥48dB
Video Output   1.0vp-p.75Ω
Current Consumption  30-60mA
Operating Temp. (F) -20~+100
Storage Temp. (F)  -40~+120
TV System NTSC/PAL
White Balance Auto





























JEEP COMMANDER Backup Camera System PACKAGE CONTENT



    • Multimedia Interface
    • Plug & Play Multimedia Harness
    • OEM Style JEEP Rear View Camera (Sony CCD HD)
    • Power/Ground harness cable
    • 35FT Video cable
    • Installation Instructions
    • Owners Manual/Warranty Card



More Information
Make JEEP
Year 2008,2009,2010,2011,2012,2013
