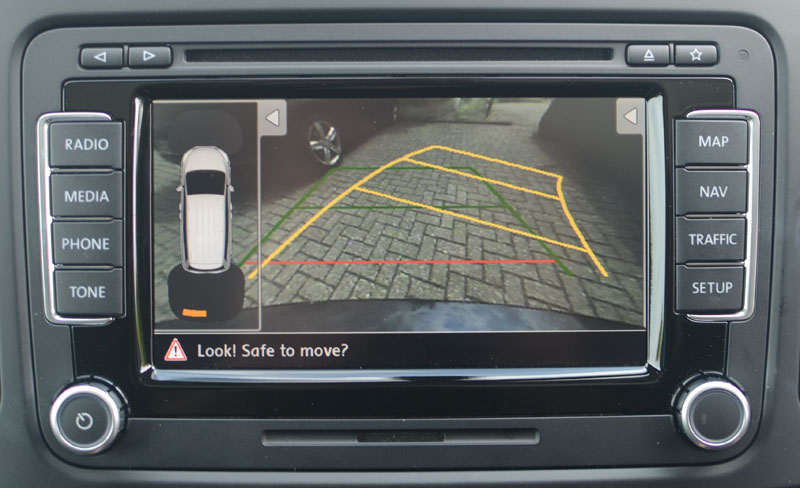

This OEM Integrated VOLKSWAGEN Rear-View Tailgate Handle Backup Camera is designed for VOLKSWAGEN models: Golf Plus, Tiguan, Touareg. The Camera can be integrated to a factory built-in car monitor or paired with one of the OEM style Rear-View Mirror LCD Systems

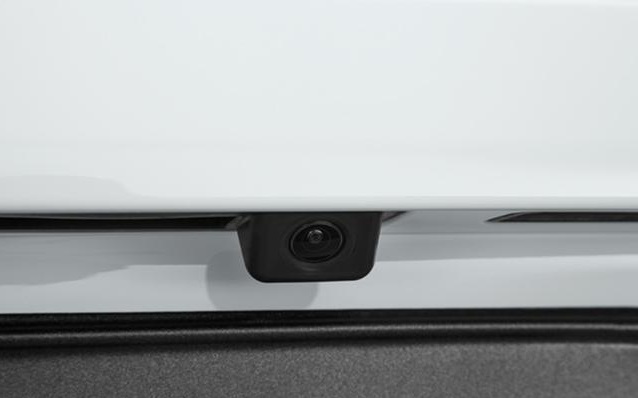

The VWTGHC-1 is designed especially for VOLKSWAGEN models as a factory parking and rear-view assist upgrade. The OEM Integrated Camera replaces and mounts within the tailgate handle of the trunk through a simple installation that provides a wide field of vision and a colorful high definition image.
| VOLKSWAGEN Model | Model Year |
| Golf Plus | 2009-2014 |
| Tiguan | 2009-2014 |
| Touareg | 2009-2014 |
Features
Tailgate Handle Camera fitment
Trunk latch soft pad trigger
SONY CCD HD
Vivid Color High Resolution
170° Wide Angle View
Parking Guide Lines (can be turned on/off)
Waterproof Ip68
Shockproof
Simple Installation
No drilling or cutting wires required
Specifications
| Specification Terms | Product Values |
| Image Sensor | CCD HD Sony |
| Power Supply | DC12V±1V |
| Power | <1W |
| Effective Pixels | 728*582 |
| Resolution (TV Line) | 520 |
| Electronic Shutter | 1/60, 1/10,000 sec |
| Lens Angle | 170° |
| Min. Illumination | 0.01lux |
| IP Rating | Ip68 |
| S/N Ratio | ≥48dB |
| Video Output | 1.0vp-p.75Ω |
| Current Consumption | 30-60mA |
| Operating Temp. (F) | -20~+100 |
| Storage Temp. (F) | -40~+120 |
| TV System | NTSC/PAL |
| White Balance | Auto |
Note! Camera is not meant for constant connection to car's electrical system. Power supply should be organized in such a way that the camera switches on only when it is necessary (e.g. when reversing).
| Make | VOLKSWAGEN |
|---|---|
| Year | 2009,2010,2011,2012,2013,2014 |
